Solar / DC Cables

Wire & Cables > Multi-Core Cables

Application

Solar cables are intended for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation, and buried in ground in constructionally covered systems. The cables can be used indoors, outdoors, in hazardous explosion areas, in industry, and in agriculture. They are suitable for applications in equipment with protective insulation

Standard - EN 50618:2015.

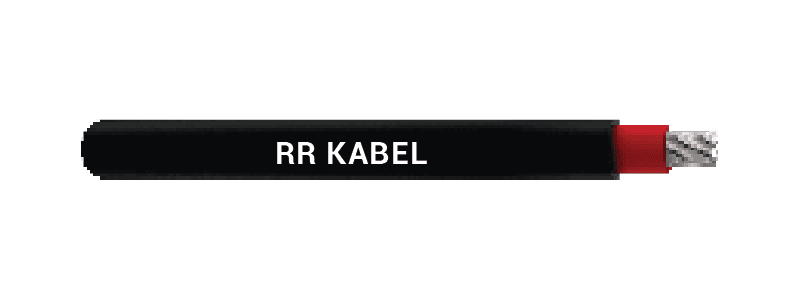

Cable Construction

Conductor: Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.

Insulation: UV-resistant, cross-linkable, halogen-free, flame-retardant compound for core insulation.

Sheath: UV-resistant, cross-linkable, halogen-free, flame-retardant compound for Sheath over insulation.

Cable Colour: Red, Black

GET YOUR QUOTE NOW

Please send your inquiry, and we will be in touch with you.

WHATSAPP

PRICELIST

GET YOUR QUOTE NOW

Whatsup Us   Pricelist

  • Single Cable: EN 60332-1-2

    • Multiple Cables: DIN VDE 0482 / EN 50305

    Low Smoke: DIN VDE 0482-268-2

    Light Transmission: > 70% (EN 50268-2)

    Low Corrosivity: EN 50267-2-2

    Low Toxicity: ITC < 3


Mineral Oil: 24 h at 100°C (DIN EN 60811)

Acid / Alkali: EN 60811-2-1 (7 days at 23°C)

Ammonia: 30 days (saturated atmosphere)

Weather: Ozone & UV resistant (DIN EN / UL / ISO)

Water Absorption: DIN EN 60811-1-3

Ambient Temp: –40°C to +90°C

Conductor Temp: Up to +120°C (IEC 60216)

Short Circuit: 250°C for 5 sec

Damp Heat Test: EN 60068-2-78 (90°C, 85% RH, 1000 h)

Cold Resistance: DIN EN 60811-1-4

Min. Bending Radius: 4 × cable Ø (fixed)

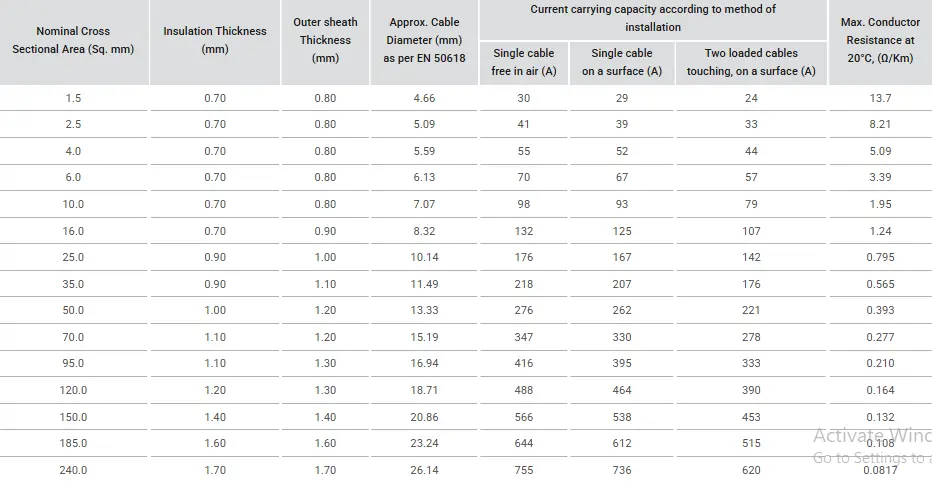

Cable Design Parameters
