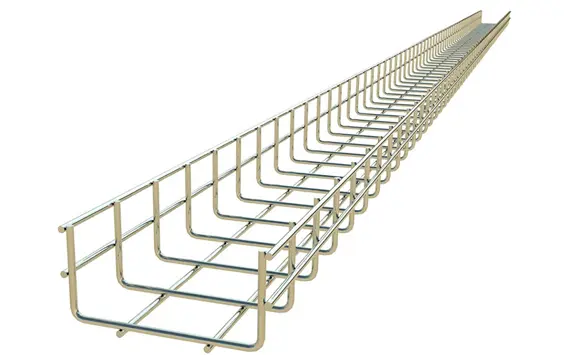

Powder Coated (PC) Wire Mesh Cable Trays

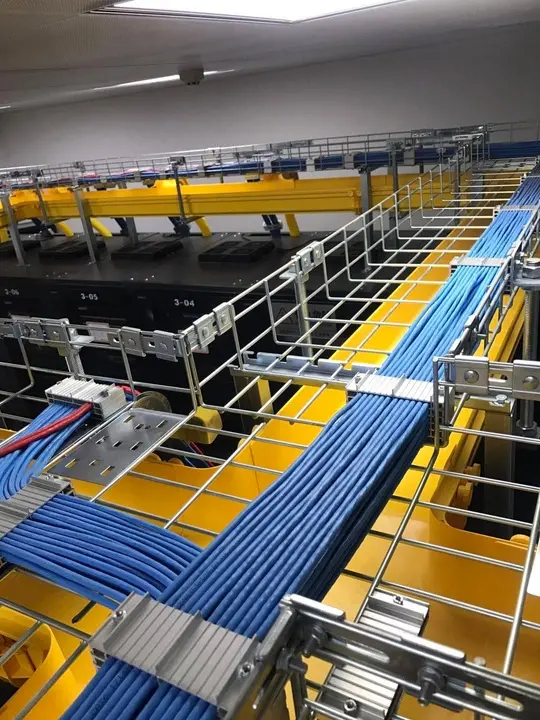

Our Powder Coated (PC) Wire Mesh Cable Trays are designed for superior cable management in industrial, commercial, and data center applications. These Wire Mesh Cable Trays provide excellent ventilation, durability, and corrosion resistance, ensuring long-lasting performance in demanding environments.

GET QUOTATION Contact Us

Technical Specification & Dimensions

Wire Meash Cable Trays

Length

2.5 mtr / 3 mtr

Width

50 mm – 600 mm

Height

50 mm, 100 mm, 150 mm

Thickness

4 mm, 5 mm, 6 mm

Raw Material

MS, SS304, SS316, SS202

Finishes

Powder coated, Electro galvanized, PVC, Hot Dip Galvanizing

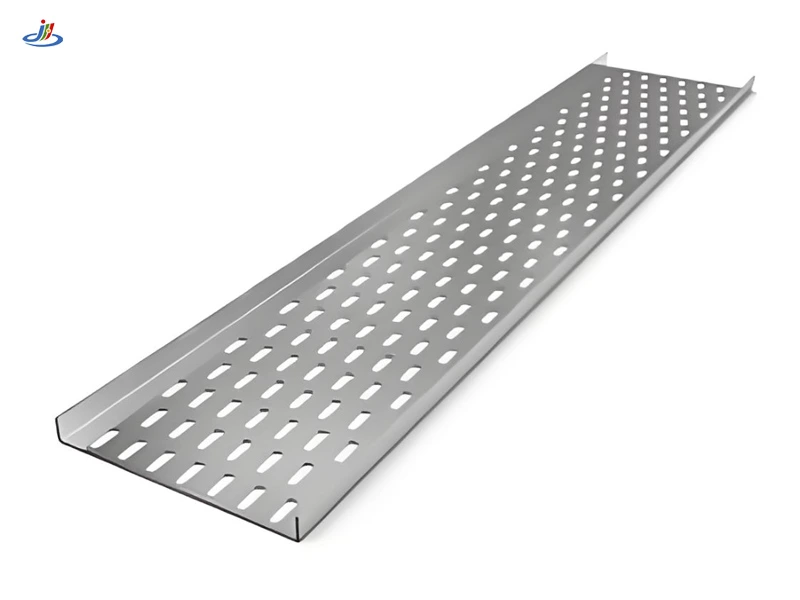

Design	Made of welded steel wires in a basket/mesh form	Solid sheet bottom with perforations (holes)
Strength / Load Capacity	Light–Medium	Medium
Ventilation	Excellent (open mesh allows airflow)	Good (through holes)
Heat Dissipation	Very high	Moderate
Cable Protection	Low (open, dust can enter)	Medium (partial protection)
Best For	Data centers, IT, networking, telecom cables	Control, instrumentation, power distribution cables
Flexibility	Very flexible – can be cut & bent easily for routing	Limited flexibility – fixed shapes & bends
Ease of Installation	Very easy, quick to modify on site	Easy but needs pre-fabricated bends/couplers
Cost	Usually lower for short/light runs	Higher than mesh (for heavy-duty use)
Look/Finish	Lightweight, modern	Sturdy, industrial
