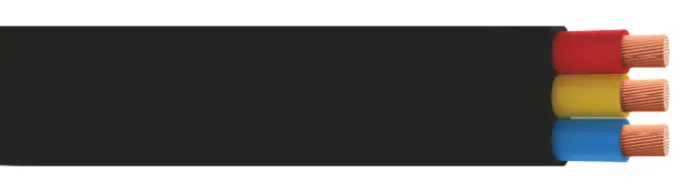

3-core Submersible Flat Cable
3-core Submersible Flat Cable
Application
PVC-insulated and PVC sheathed 3 Core Flat Submersible Cables are specifically engineered for submersible pump and motor connections in agricultural, residential, and industrial environments. These cables are extensively used in borewell pumps, openwell pumps, water supply systems, and industrial pumping applications, where consistent power transmission and safety are critical.
Manufactured using high-grade PVC compounds, the cable offers excellent electrical insulation, high dielectric strength, and superior thermal stability. The robust outer sheath is designed to withstand continuous water immersion, making it highly water-resistant, moisture-proof, and suitable for harsh outdoor conditions. Due to their mechanical strength and long service life, these cables are also widely adopted in industrial machinery, control panels, and low-voltage power distribution systems.
Application
PVC-insulated and PVC sheathed 3 Core Flat Cables are ideal for submersible pump and motor connections in agricultural and industrial applications.
The durable PVC sheath provides excellent water resistance, making the cable suitable for continuous immersion and outdoor use. It is also widely used as an industrial power cable where reliability and safety are essential.
GET YOUR QUOTE NOW
Technical Data
Standard: IS 694 marked, FIA / TAC approved
Conductor: Electrolytic grade annealed copper
Construction: Multi-drawn copper strands for flexibility
Core Colours: Red, Yellow (centre), Blue
Sheath Colour: Black PVC
Voltage Rating: Up to 1100 V
Packing: 100 m coils (custom lengths on request)
Technical Data
Standards & Approvals:
Manufactured in compliance with IS 694 standards and duly IS marked. Approved by FIA / TAC, ensuring suitability for industrial and infrastructure applications.
Conductor Material:
High-purity electrolytic grade annealed copper conductor, designed to deliver superior electrical conductivity and long-term reliability.
Conductor Construction:
Multi-drawn strands of electrolytic annealed plain copper ensure uniform resistance, precise dimensions, and enhanced flexibility
Core Identification:

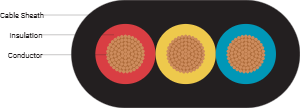

Three-core flat construction with standard colour coding – Red, Yellow (centre core), and Blue – for easy phase identification during installation and maintenance.
Voltage Grade:
Rated for low-voltage applications up to and including 1100 V, suitable for submersible pump cables and industrial power distribution.
Packing:
Supplied in standard coils of 100 metres. Longer lengths available on request to meet project-specific requirements.

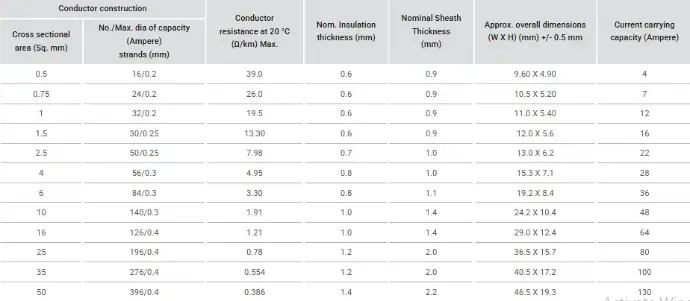

Cable Design Parameters
PVC 70°C, 3 – PVC HR 85°C.
