Fire Alarm Cable

Application

Fire alarm cables are designed to ensure safe, uninterrupted signal transmission for fire detection and emergency systems. These cables are built to function reliably in extreme heat and fire-prone environments, maintaining circuit integrity when it matters most.

• Used to connect fire alarm systems, smoke detectors, emergency lighting, sounders, and manual call points
• Suitable for residential, commercial, industrial, and public infrastructure
• Designed for fixed wiring in conduits, trays, or directly in the wall

Key Features & Benefits

• Flame-retardant and fire-resistant insulation for circuit integrity during fire
• Low smoke, zero halogen (LSZH) or FRLS/FRLSH construction minimizes toxic gas emissions
• Ensures reliable signal transmission under high temperatures
• High dielectric strength and mechanical durability
• Compliant with national fire safety standards (customize with IS or BS/EN standards if relevant)

Technical Data

Voltage Rating: 300/500V

Temperature Range: -30°C to + 70°C (The cable should not be flexed when either the ambient or cable temperature is below 0°C)

Minimum Bending Radius: 6D

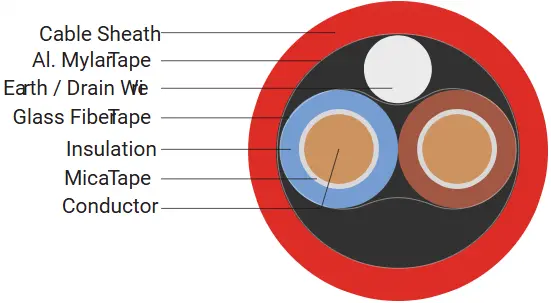

Cable Construction

 Plain annealed copper conductor to BS EN 60228, class 2.

 Primary insulation of glass mica fire-resistant tape.

 Secondary insulation of high-performance silicone rubber.

 EI 2 to BS 7655 Section 1.1.
