Communication Cables
Wire & Cables > Multi-Core Cables

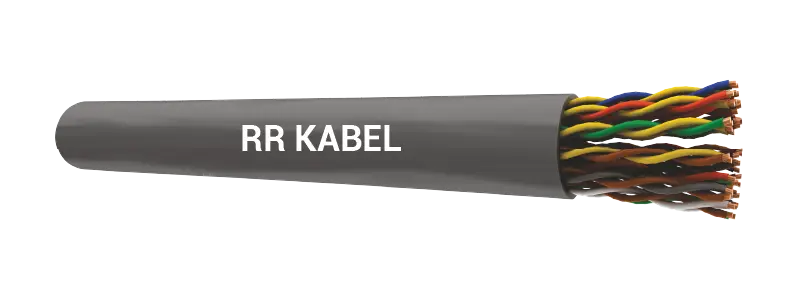

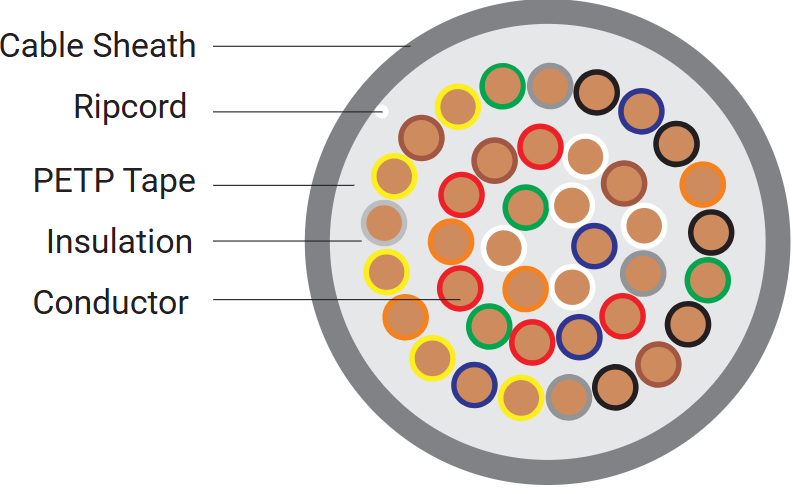

Telephone Cables
Application
Telephone Cables are recommended for switchboard and internal telephone wiring in residential, commercial, and institutional infrastructure. These cables are specifically designed for the efficient transmission of analog and digital signals in low-voltage telecommunication and communication systems, ensuring stable and noise-free performance.
Due to their reliable signal integrity and low interference characteristics, telephone cables are widely used in:
Telephone and intercom wiring systems
Fax machines, modems, and PBX systems
Alarm systems, annunciators, and security systems
Data acquisition and recording systems
Control panels and signal transmission devices
Telecom and communication equipment installations
These cables ensure clear voice transmission, minimal signal loss, and interference-free communication, making them suitable for a wide range of telecom, signaling, and data communication applications.
Telephone Cables
Application
Telephone Cables are used for switchboards and telephone wiring in residential and commercial buildings. They are suitable for transmitting low-voltage analog and digital signals.
Telephone and intercom wiring systems
Fax machines, modems, and PBX systems
Alarm systems, annunciators, and security systems
Data acquisition and recording systems
Control panels and signal transmission devices
Telecom and communication equipment installations

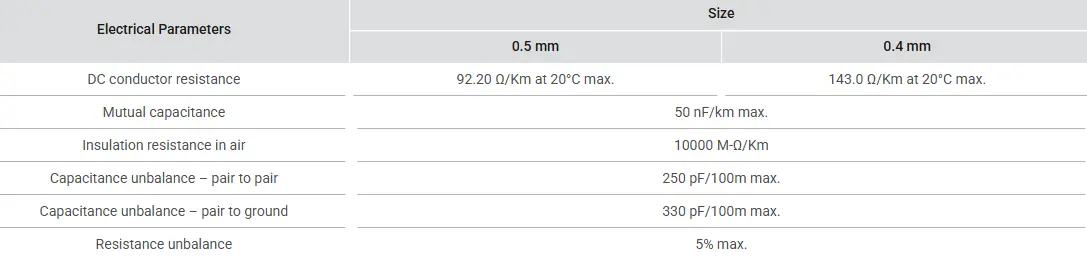

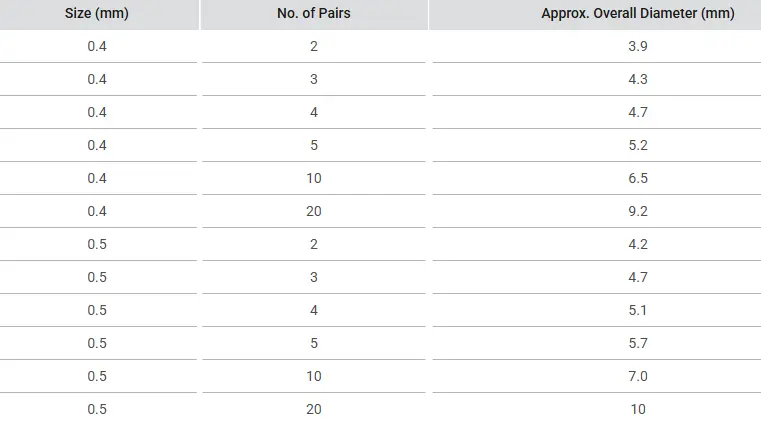

Size: 1-5 pair | 10 pair | 20 pair
Sqmm: 0.5 | 0.4

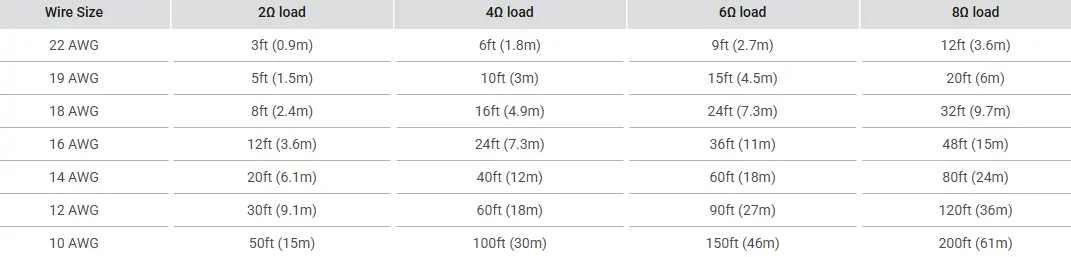

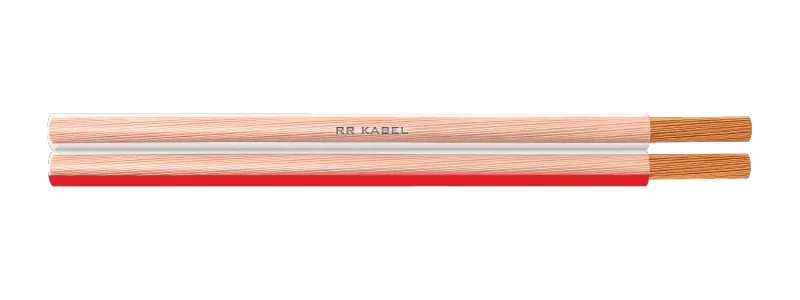

Speaker Cable
Application

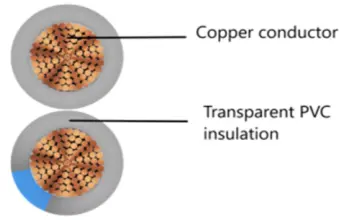

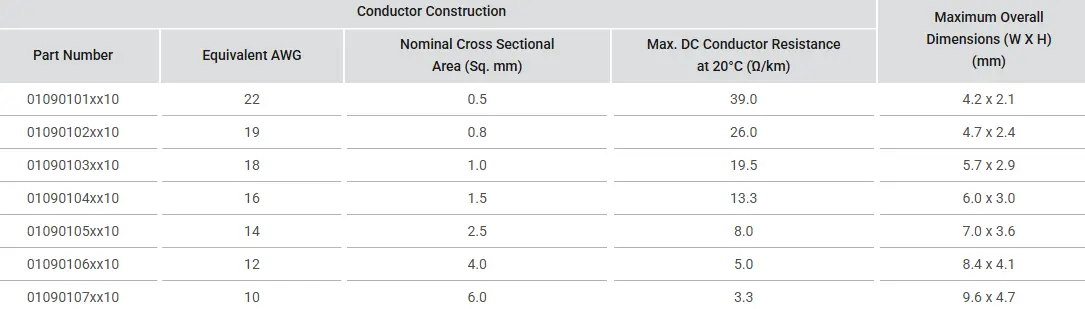

Cable Construction
The cables are manufactured using bright annealed, plain, flexible electrolytic-grade copper conductors, compactly bunched to provide excellent conductivity and flexibility. Each conductor is insulated with a specially formulated PVC compound, offering durability, electrical safety, and long service life.
Colour Availability: Transparent or Black with Red tracer for clear polarity identification
Packing: Supplied in standard 90-metre coils
Speaker Cable
Application
Speaker Cables are used for connecting speakers and PA systems, providing clear, distortion-free sound with low signal loss.
Construction
Flexible electrolytic copper conductors
PVC insulated cores with uniform spacing
Ensures low distortion and stable audio output
Colours: Transparent / Black with red tracer
Packing: 90 m coils

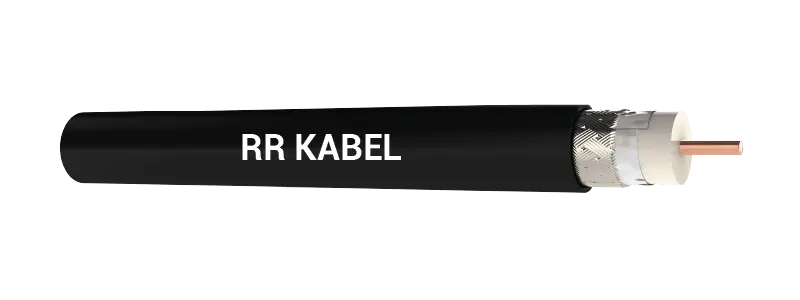

Co-Axil Cable
Application
High-quality Co-axial Cables are designed specifically for cable TV networks, ensuring notch-free signal transmission and low attenuation across a wide range of frequencies. These cables deliver superior picture and audio clarity with minimal interference.
The specially engineered outer jacketing enhances durability, making them ideal for long-term use—even in rugged and harsh environmental conditions.
Conductor: Solid electrolytic annealed copper
Insulation: Foam PE for low attenuation
Screen: Aluminium Mylar tape shielding
Braiding: 60% ATC / Aluminium alloy
Jacket: Rugged PVC for outdoor use
Marking: RATNA CO-X
Co-Axil Cable
Application
A co-axial cable / Tv Cable is a type of electrical cable used to transmit high-frequency signals with minimal interference. It consists of a central copper conductor, surrounded by insulation, a metallic shield, and an outer protective jacket
Conductor: Solid electrolytic annealed copper
Insulation: Foam PE for low attenuation
Screen: Aluminium Mylar tape shielding
Braiding: 60% ATC / Aluminium alloy
Jacket: Rugged PVC for outdoor use
Marking: RATNA CO-X

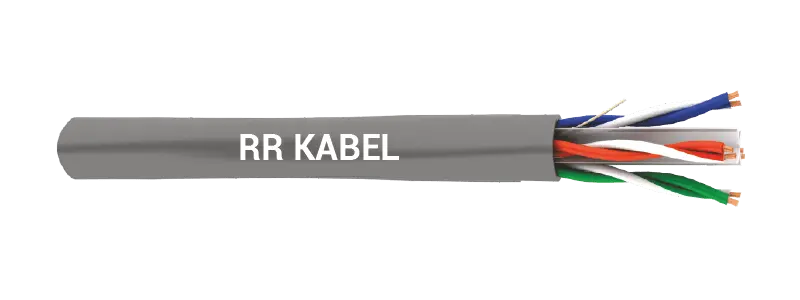

LAN Cable
Application
LAN Cables are high-performance networking cables designed to meet the demands of modern computer networks and data communication systems. They form the backbone of structured cabling infrastructure, enabling fast, stable, and secure data transmission across industrial facilities, commercial buildings, and residential complexes.

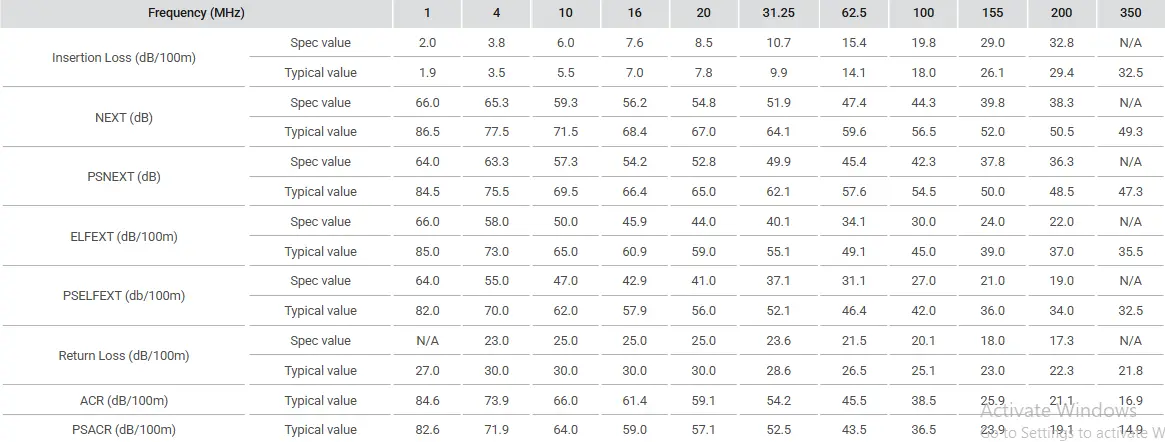

RATNALAN Enhanced CAT 6 UTP Cables are capable of handling data rates exceeding 100 Mbps, making them suitable for high-speed Ethernet networks, servers, and bandwidth-intensive applications.
RATNALAN CAT 5e UTP Cables are independently tested and verified to exceed the performance requirements of EN 50173, ISO/IEC 11801, and TIA/EIA 568-B-1/B-2 standards, ensuring reliable performance, low crosstalk, and consistent signal integrity.
LAN Cable
Application
LAN Cables are used in modern computer networks and form the backbone of data transmission systems in residential, commercial, and industrial infrastructure.
RATNALAN CAT 6 UTP: Supports high-speed data transmission
RATNALAN CAT 5e UTP: Exceeds EN 50173, ISO/IEC 11801 & TIA/EIA standards
Ideal for Ethernet networking, IT infrastructure, and structured cabling systems.

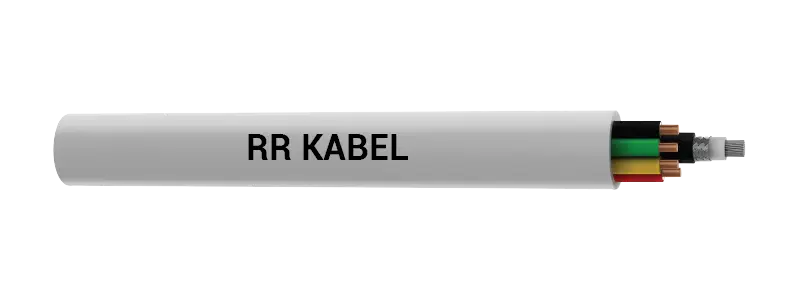

CCTV Cable
Application
The cables feature dense tin-coated copper shielding, which effectively suppresses EMI/RFI interference, ensuring stable and noise-free video output even in electrically noisy environments. The flexible multi-stranded copper core enhances mechanical strength, durability, and ease of routing, making the cable suitable for long runs and demanding installation conditions.
CCTV Cable
Application
CCTV Cables are designed for clear and reliable video transmission in security and surveillance systems. Available in 4+1 and 3+1 variants, they combine video and power lines for easy installation.
The tin-coated copper shielding reduces EMI/RFI interference, while the flexible multi-stranded core ensures durability and smooth handling.
